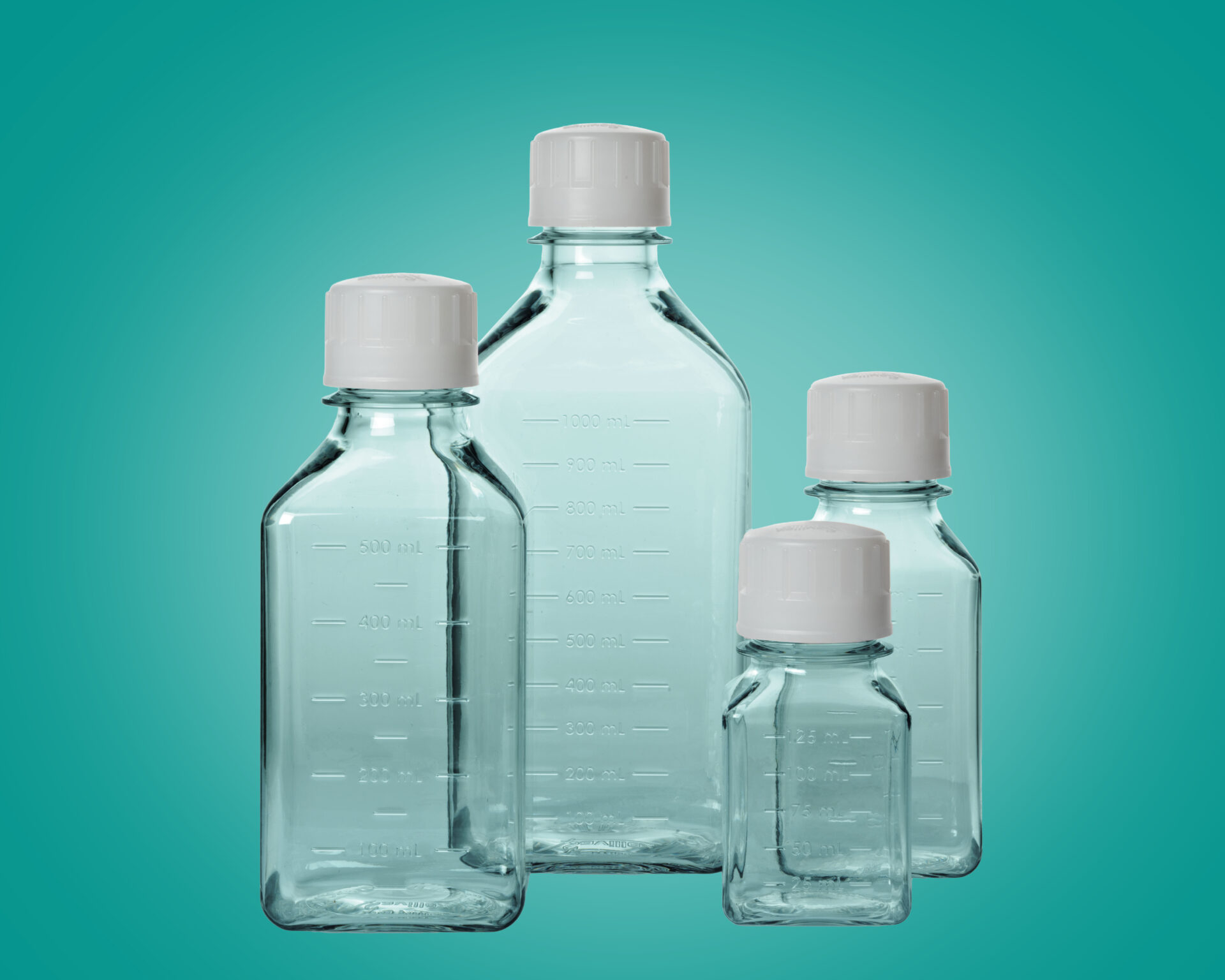

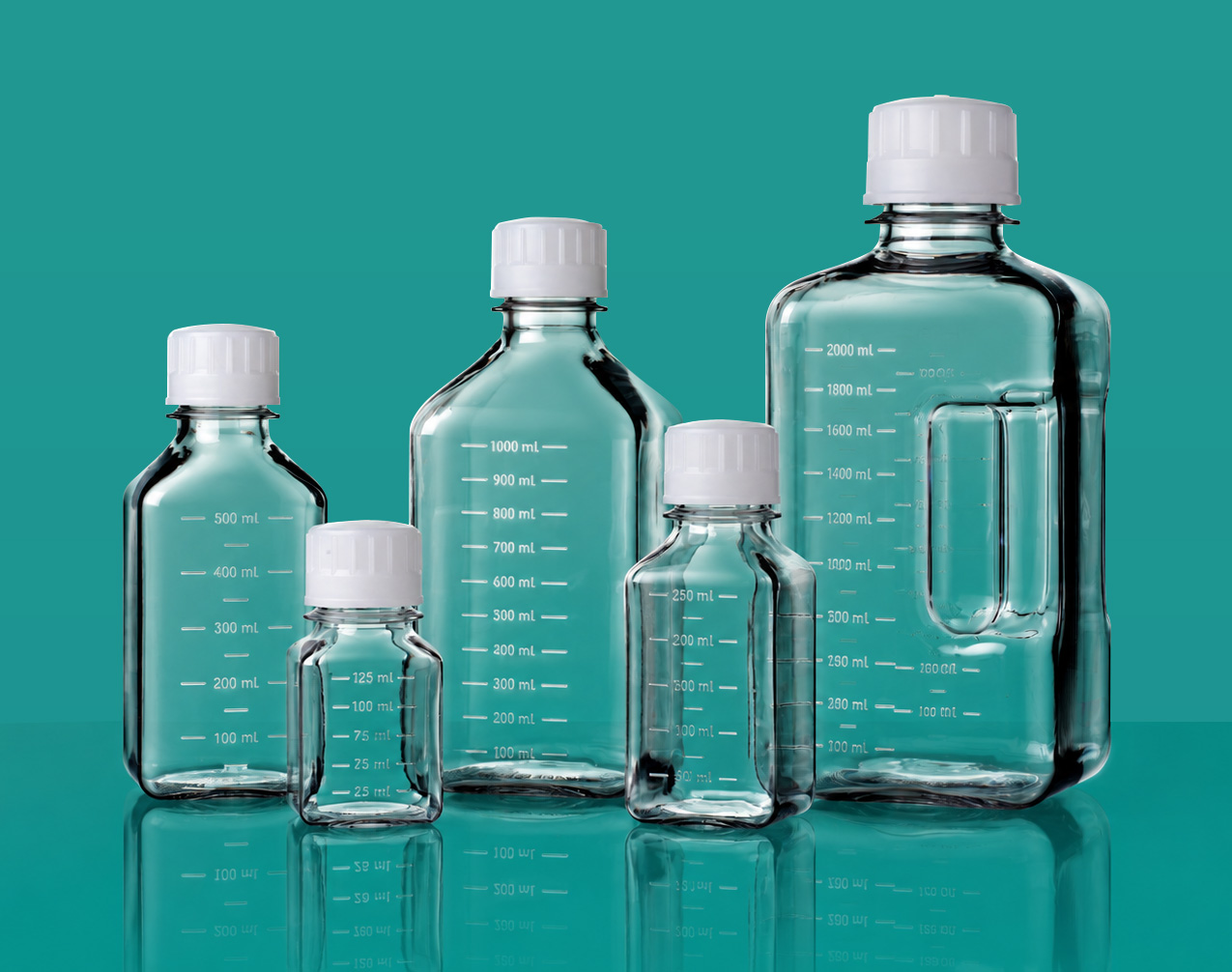

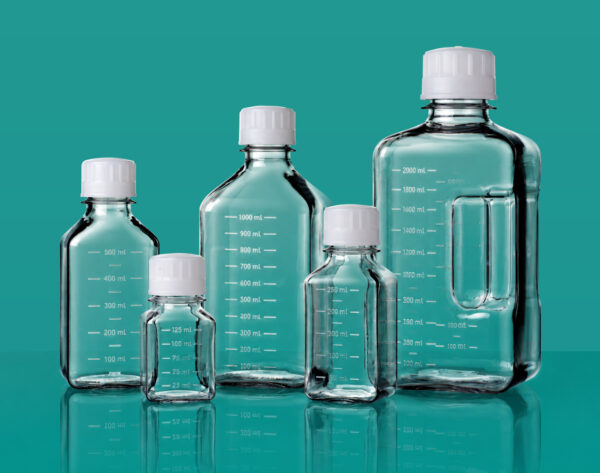

PETG Square Media Bottles
AdvantaPure™ PETG Square Media Bottles are engineered for the secure storage and transfer of critical fluids in pharmaceutical, biopharmaceutical, and life science applications. Available sterile or non-sterile PETG bottles are manufactured in the USA under an ISO 7 cleanroom, ensuring stringent quality control and adherence to industry standards, these bottles provide exceptional clarity for easy visual inspection, low extractables, and strong chemical resistance to help protect product integrity.
The space-efficient square design improves stability during handling and storage, while the durable PETG construction withstands freeze/thaw cycles with temperatures down to –85 °C without cracking, making them ideal for cold-chain applications
- Available sterile or sterilization
- Purchase in bulk, smaller lab pack sizes or with custom assemblies
- Short lead times
- Minimal particulate – provided by a fully automated production process
- Exceptional clarity – attributed to the unique blow molding manufacturing production process occurring within a Class VII cleanroom
- Enhanced Impact Strength
- Uniform Wall Dimensions
- Lugged HDPE Cap Design – enables more accurate torquing for better sealing and less leakage, imparting enhanced safety
- Ergonomic design fits most hand sizes, bare or gloved, well for better handling
- Withstands freeze/thaw cycles down to -185ºF (-85ºC)
- Low gas permeability for improved barrier protection
- Square, space-saving design maximizes storage efficiency, improves bottle stability
- Comprehensive validation package available to expedite qualification and validation
- Media Preparation and Storage
- In-Process Sampling
- Aseptic Filling Operations
- Buffer and Reagent Storage
- Cold Chain Applications
- Cell Culture Applications
- Formulation and Fill-Finish
- Clinical Trial Material Handling
- Transportation of Reagents
- USP <665> Extractables/Leachables
- USP <661.2> Physiochemical Test for Plastics
- USP <85> Bacterial Endotoxin*
- USP <788> Particulate Matter in Injections*
- RoHS Compliant
- ADCF
*NOTE: Only tested for sterile bottles
| Material of Constuction | PETG, HDPE (closure) |
| Molded Graduation | Yes |
| Working Temperature Range | -185°F to 158°F (-85°C to 70°C) |
| Closure Included | Yes |
| Shelf Life | Five (5) years for sterile bottles. No expiration date for non-sterile |
| Gamma Stable | Maximum 50 kGy |
| Autoclavable | Not autoclavable |
| Drug Master File (DMF) (On the resin) | 9987 |
| Manufacturing Location | ISO Class 7 Cleanroom |
| Manufacturing Process | Injection blow molded |
| Chemical Resistance* | Excellent |
| Assemblies | Available as part of our sterilized assemblies |
View the complete Chemical Compatibility Chart here
| PETG BOTTLE | HDPE CAP Grade |
|---|---|
| Crystal-clear transparency for easy visual checks | Excellent chemical resistance for aggressive or reactive solutions |
| Strong barrier against gas to help maintain pH-sensitive contents |
Secure, leak-proof seal for safe storage and transport |
| Durable and impact-resistant for demanding lab use | Stands up to routine handling without cracking or stress |
Options & Sizes

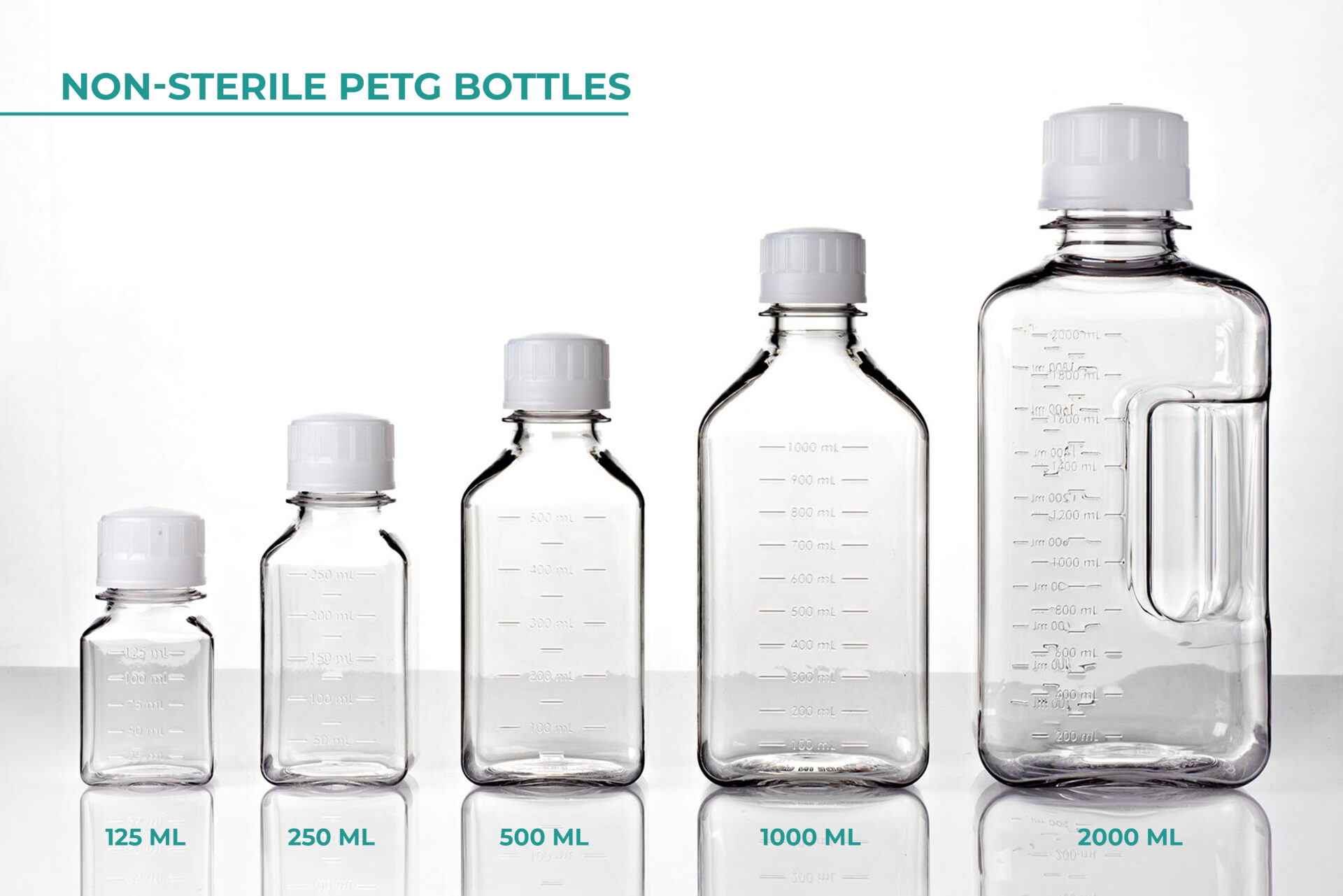

Non-Sterile
| Part Number | Description | Closure | Quanity | ||
|---|---|---|---|---|---|
| Bottles per Tray | Trays per Case | Total | |||
| A2030010 | 125 mL AdvantaPure PETG Square Media Bottle, Non-Sterile | 38-430 | 24 | 4 | 96 |
| A2030011 | 250 mL AdvantaPure PETG Square Media Bottle, Non-Sterile | 38-430 | 30 | 2 | 60 |
| A2030012 | 500 mL AdvantaPure PETG Square Media Bottle, Non-Sterile |
38-430 | 20 | 2 | 40 |
| A2030013 | 1000 mL AdvantaPure PETG Square Media Bottle, Non-Sterile | 38-430 | 12 | 2 | 24 |
| A2030014 | 2000 mL AdvantaPure PETG Square Media Bottle, Non-Sterile | 53B | 6 | 2 | 12 |

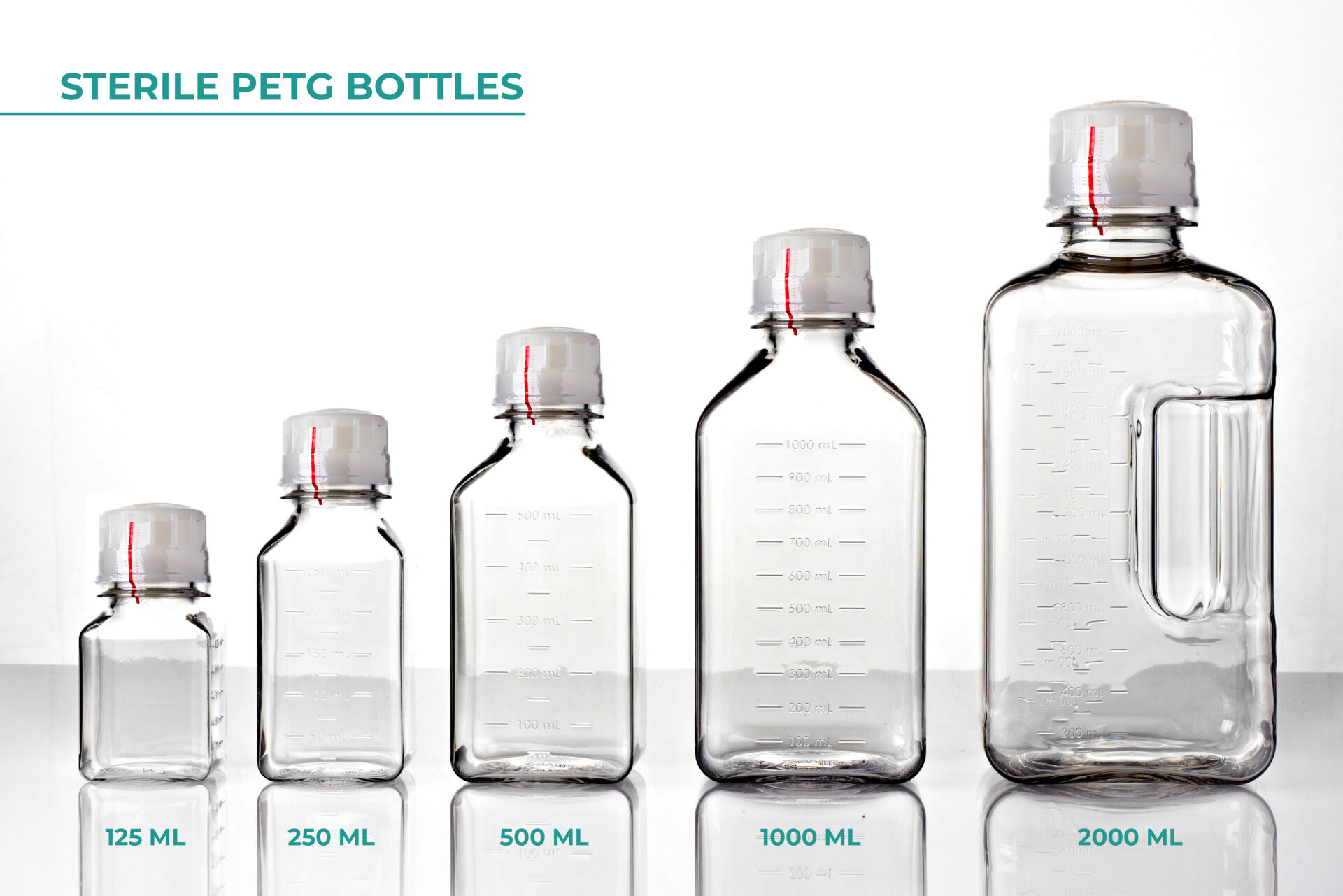

Sterile
| Part Number | Description | Closure | Quanity | ||
|---|---|---|---|---|---|
| Bottles per Tray | Trays per Case | Total | |||
| A2020020 | 125 mL AdvantaPure PETG Square Media Bottle, Sterile |
38-430 | 24 | 4 | 96 |
| A2020021 | 250 mL AdvantaPure PETG Square Media Bottle, Sterile |
38-430 | 30 | 2 | 60 |
| A2020022 | 500 mL AdvantaPure PETG Square Media Bottle, Sterile |
38-430 | 20 | 2 | 40 |
| A2020023 | 1000 mL AdvantaPure PETG Square Media Bottle, Sterile |
38-430 | 12 | 2 | 24 |
| A2020024 | 2000 mL AdvantaPure PETG Square Media Bottle, Sterile |
53B | 6 | 2 | 12 |

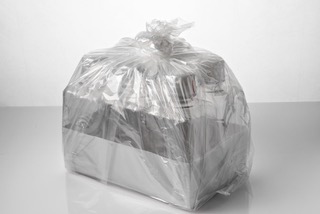

Sterile, Lab Pack
| Part Number | Description | Closure | Quanity | ||
|---|---|---|---|---|---|
| Bottles per Tray | Trays per Case | Total | |||
| A2020025 | 125 mL AdvantaPure PETG Square Media Bottle, Heat-Shrink Band, Sterile, Lab Pack |
38-430 | 24 | 2 | 48 |
| A2020026 | 250 mL AdvantaPure PETG Square Media Bottle, Heat-Shrink Band, Sterile, Lab Pack |
38-430 | 30 | 1 | 30 |
| A2020027 | 500 mL AdvantaPure PETG Square Media Bottle, Heat-Shrink Band, Sterile, Lab Pack |
38-430 | 20 | 1 | 20 |
| A2020028 | 1000 mL AdvantaPure PETG Square Media Bottle, Heat-Shrink Band, Sterile, Lab Pack |
38-430 | 12 | 1 | 12 |
| A2020029 | 2000 mL AdvantaPure PETG Square Media Bottle, Heat-Shrink Band, Sterile, Lab Pack |
53B | 6 | 1 | 6 |
NOTE: Bottles can only be ordered by the full case. Also available as part of our sterilized assemblies. Assemblies
are gamma-irradiated in the United States

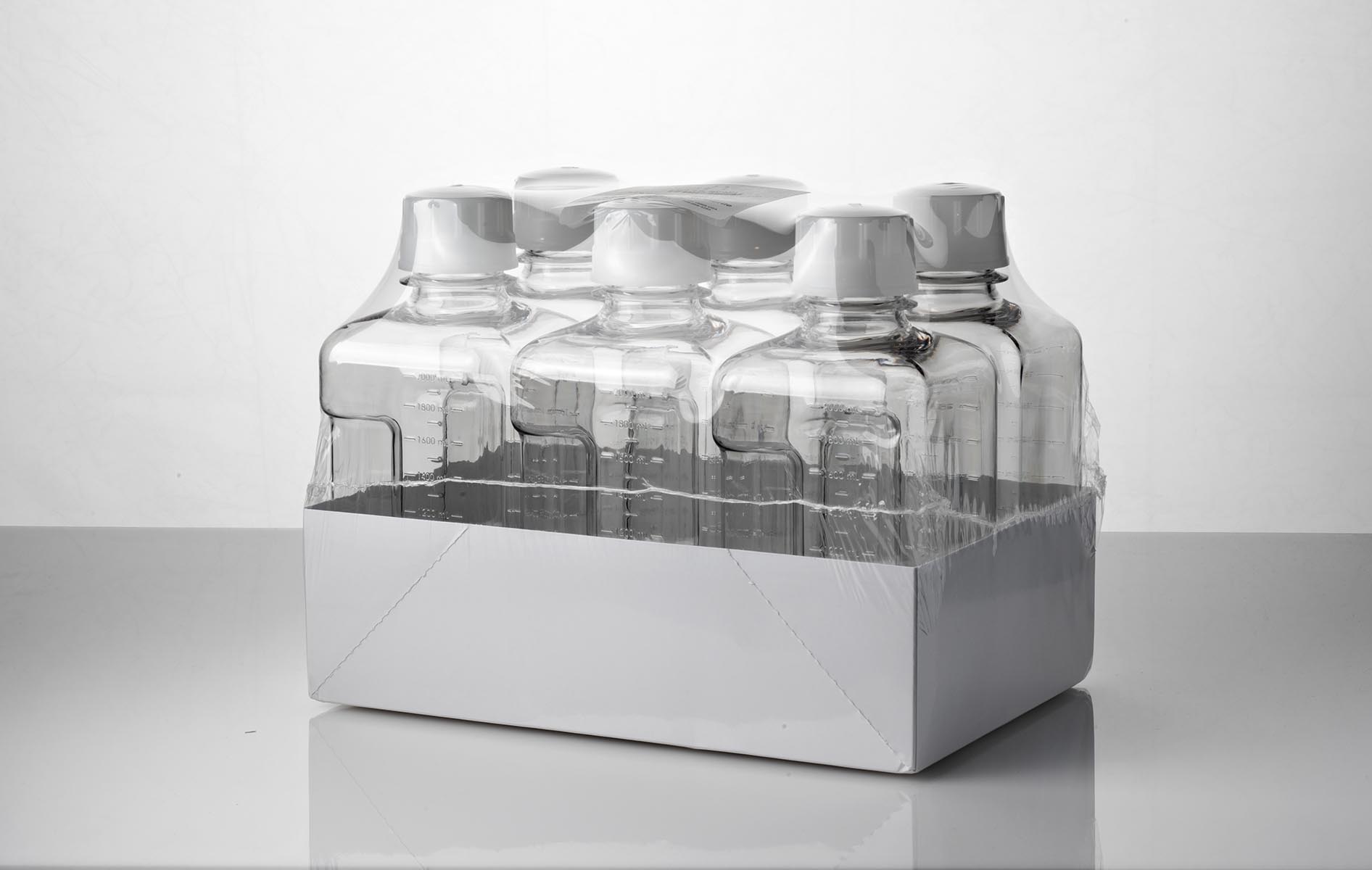

All AdvantaPure PETG Square Media Bottles are packaged in individually shrink-wrapped trays, and the trays are placed
on top of the other

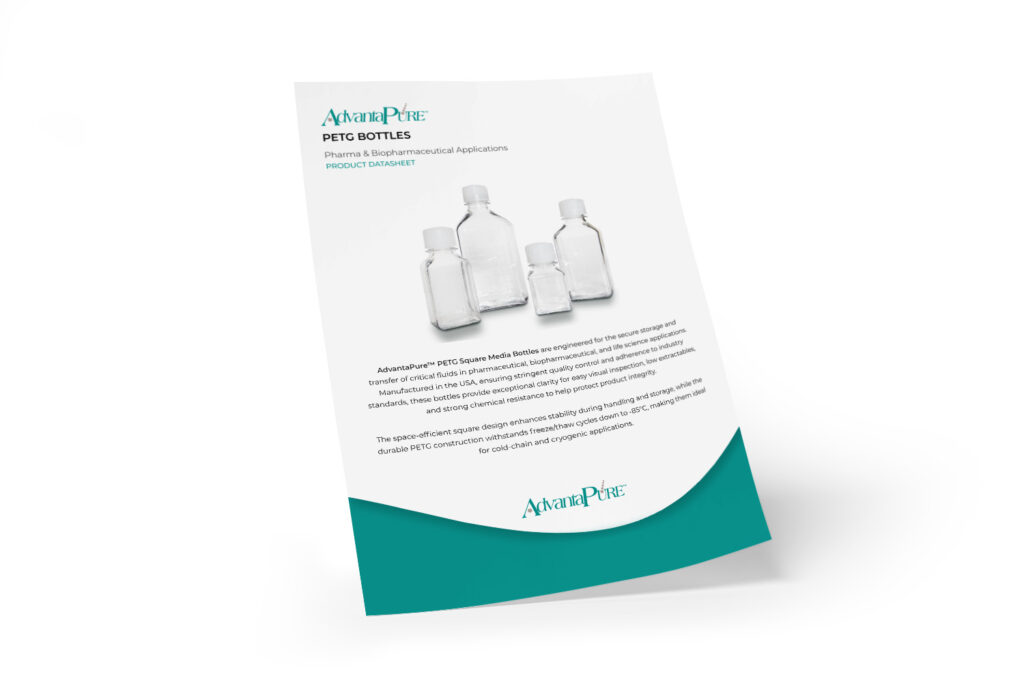

Download the PETG Bottle Technical Datasheet
