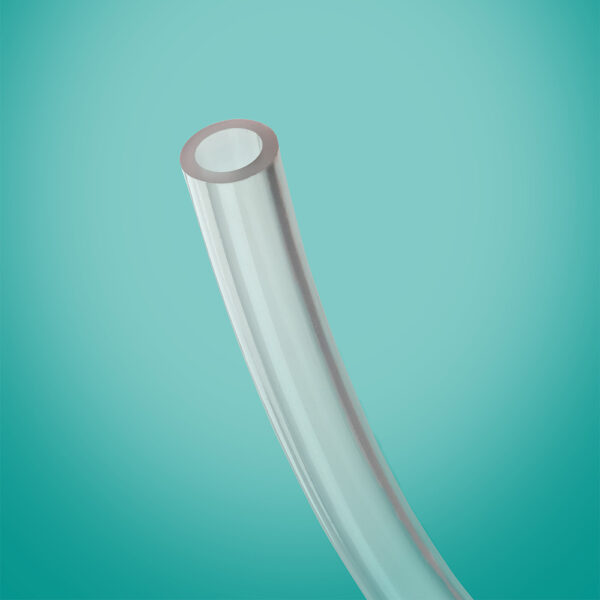

AdvantaSil® APLT Low Temperature Silicone Tubing
AdvantaSil® Low Temperature (APLT) silicone tubing is a platinum-cured, single-use tubing engineered for fluid transfer in applications requiring reliable performance at extreme low temperatures. It maintains flexibility and structural integrity down to -86ºC (-122.8°F to 347°F), resisting cracking and deformation under demanding conditions. Designed to meet the stringent requirements of pharmaceutical and biopharmaceutical cold-chain applications, AdvantaSil Low Temperature tubing is an ideal solution for bulk drug storage, frozen fluid transfer, and other low-temperature processes where consistent performance and reliability are critical.
- Remains flexible and durable at temperatures as low as -86ºC (-122.8°F to 347°F)
- Allows for optimal freezer utilization since no clam shell is needed to protect the tubing
- Resists compression set and cracking at low temperatures
- All assembly and final packaging is performed in an ISO Class 7 cleanroom
- Manufactured in ISO Class 7 cleanroom
- Manufactured with a focus on sustainability
| ASTM Method | Value | |
|---|---|---|
| Durometer, Shore A | D2240 | 40-55 |
| Specific Gravity | D792 | 1.23 |
| Ultimate Tensile Strength, psi (MPa) | D412 | 10.3 MPa |
| Ultimate Elongation, % | D412 | 600 |
| Tensile Modulus @100%, psi (MPa) | D412 | 1.1 MPa |
| Tear Strength, Die B, ppi (kN/M) | D624 | 390.7 kN/M |
Available with validated sterility assurance of 10-6 via gamma irradiation per ISO 11137 method VDmax 25.
| Acids, Dilute / Weak | Test Before Use |
| Acids, Strong / Concentrated | Test Before Use |
| Bases, Dilute / Weak | Acceptable |
| Bases, Strong / Concentrated | Test Before Use |
| Salts | Acceptable |
| High Purity Water | Acceptable |
| Oil/Water Emulsion | Test Before Use |
| Alcohol | Test Before Use |
| Organic Solvent | Not Recommended |
- BPOG Extractables/Leachables
- USP <85> Bacterial Endotoxin
- USP <87> Cytotoxicity MEM Elution
- USP <88> Class VI
- Biocompatibility ISO 10993 (part 10, 11)
- RoHS Compliant
- ADCF Compliant
| Autoclave | One-time cycle at 121°C, 30 min |
| Gamma Irradiation | Up to 45 kGy |
Options & Sizes
| Part Number | I.D. | Wall | O.D. | Standard Available Length | |||
|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | ft | |
| A7050210-50 | 0.125 | 3.18 | 0.063 | 1.59 | 0.250 | 6.35 | 50 |
| A7050535-50 | 0.250 | 6.35 | 0.063 | 1.59 | 0.375 | 9.52 | 50 |
| A7050561-50 | 0.250 | 6.35 | 0.125 | 3.18 | 0.500 | 12.70 | 50 |
| A7050821-50 | 0.375 | 9.52 | 0.125 | 3.18 | 0.625 | 15.88 | 50 |
| A7051055-50 | 0.500 | 12.70 | 0.125 | 3.18 | 0.750 | 19.05 | 50 |
NOTE: Not all standard part numbers are stocked items. For the up-to-date list of stocked sizes and lengths available, please contact your sales representative.

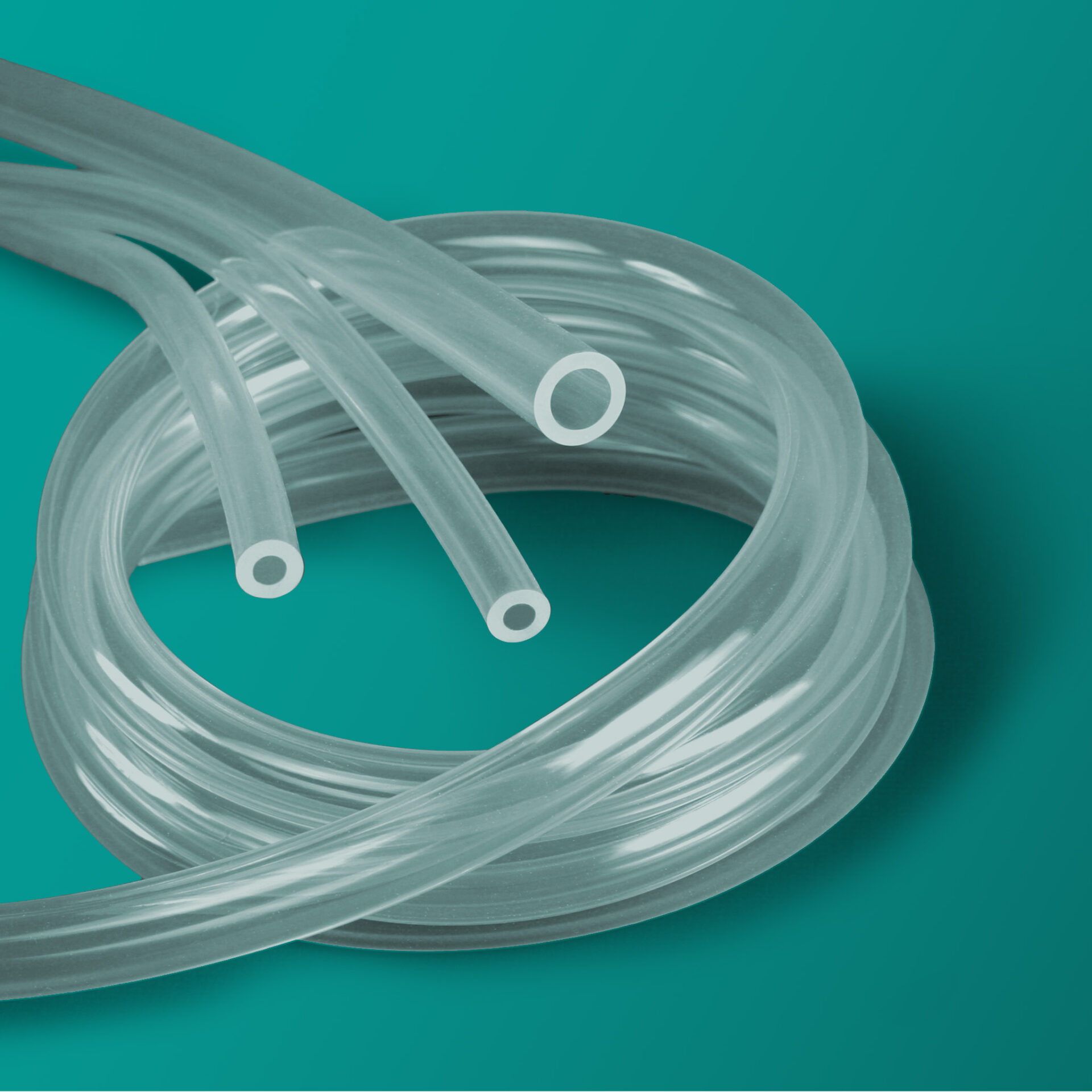

Sold by standard coil length of 50 ft. Add length suffix code L to catalog number when ordering.
Example: 50 ft. of .125 in. I.D. x .250 in O.D. tubing is product number APLT-0125-0250L.
Coils are supplied double bagged in heat-sealed polybags and bulk packed. Contact your AdvantaPure account representative for other packaging options.
Downloadable comprehensive technical data sheet available
