RFID Tracking Solutions

The Verigenics line of Radio Frequency Identification (RFID) technology offers solutions to enable the tracking and authentication of assets, equipment and consumables.

The Verigenics line of RFID technology provides a variety of benefits such as increased safety, inventory visibility, improved security and more.

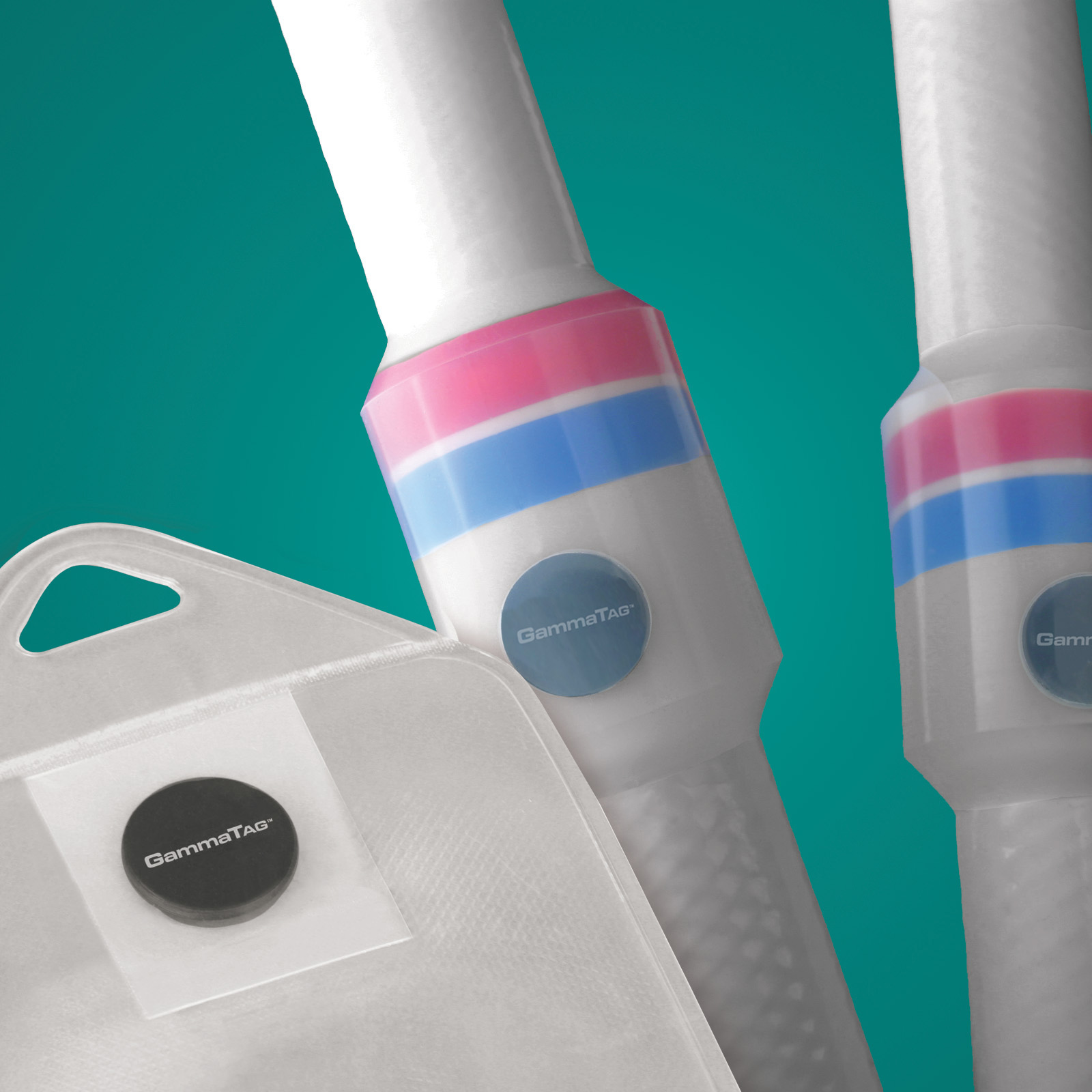

Perfectly suited to applications in the biopharma and pharmaceutical markets, the GammaTag RFID solution is perfectly suited to a variety of uses and environments.

Reach out today to discuss your project with our team!

  • Uses read/write RFID technology to identify critical process components in pharmaceutical, bioprocess/biomedical and others.
  • Record and access the status of process components on the spot or use them simply for identification (part number, lot number, gamma sterilization date, etc.).
  • Critical packaging and labeling documentation remain on the component throughout its useful life.
  • Attaches to single-use components (SUC), sample and production bags, tanks, filters, manifolds, tubing and hose, storage containers, boxes or pallets undergoing gamma radiation sterilization, dosimeters and more.
  • Allows gamma radiation sterilization of a complete single-use system for the cleanest possible products.
  • Withstands CIP sterilization.
  • GammaTag’s read/write ability makes it unique – data may be written directly on the tag, unlike read-only barcode labels.
  • Eliminates potential hazard of leachables.
  • Will not fall off during cold storage.
  • Unlike bar code labels, Gamma Tag does not require a clear sight line for reading or writing.
  • Electronically links to notes, cleaning schedules, files, certifications, photos and illustrations, installation instructions, warning notices, disposal procedures, and other instructions.
  • Eliminates the burden and bulk of paper records and logbooks.
  • RoHS compliant.
  • U.S. Patent 8,519,846.
  • Field testing is recommended for each application.
  • Single-use Systems
  • Sample & Production Bags
  • Manifolds
  • Filters
  • Tubing & Hose
  • Storage Containers, Boxes or Pallets Undergoing Gamma

Additional Tables

Specifications

Dimensions: 22mm in diameter; 2mm thick
Read/Write Range: up to 50mm
Power Type: passive; energized by RFID reader/writer
Gamma Radiation: upto45kGy
Chipset: Fujitsu MB89R118
Memory Capacity: 2048 bytes
User Memory Area: 2000 bytes
Memory Capacity: 2000 bytes
Operating Frequency: 13.56MHz ± 0.5MHz
Modulation Type: 10%ASK
Operating Temperature: -20°C to 85°C
Storage Temperature: -40°C to 85°C
Data Retention Period: 10 years at 55°C
Data Endurance: 1010 cycles
Read Speed: 1525 ms (2048 bytes)
Write Speed: 1413 ms (2000 bytes)
Other: 8 bytes/block configuration
ISO/IEC 15693 commands full support
Reading up to 258 blocks using custom commands
