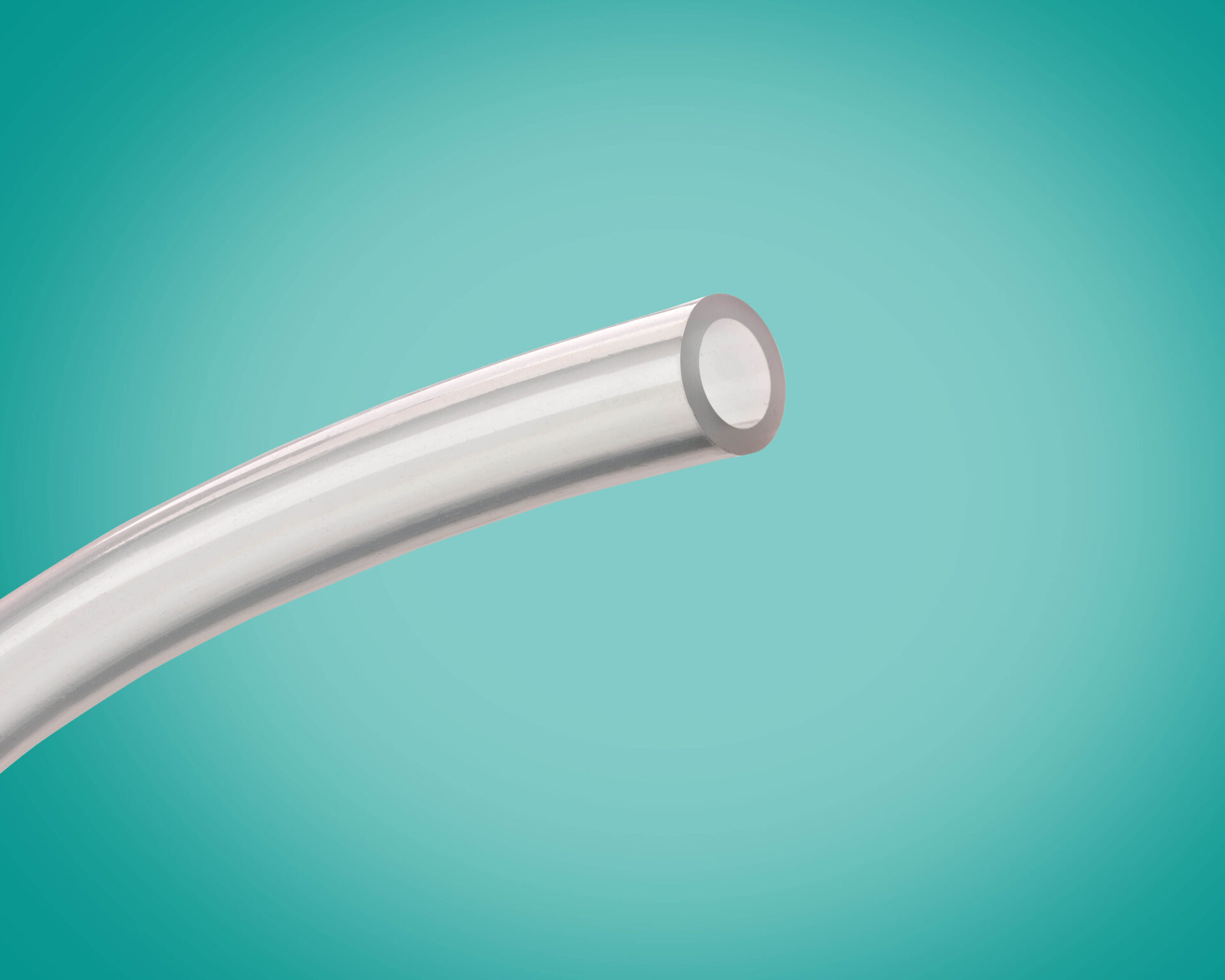

AdvantaSil® APST Platinum Cured Silicone Tubing
Request Validation PackageAdvantaSil® APST is a translucent platinum-cured silicone single-use tubing widely used for fluid transfer in critical pharmaceutical and biopharmaceutical applications, where reliability, purity, and sustainability are top priorities. AdvantaSil APST tubing is made in Class 7 cleanrooms, and it is a material of choice in overmolding applications as leak-proof molded connections, ensuring optimal fluid management integrity. AdvantaSil APST is an ideal option for quality and performance.
- Translucent for fluid flow visibility
- Short-term peristaltic pump applications
- Extruded, assembled, and packaged in an ISO Class 7 cleanroom
- General temperature range -50°F to 400°F (-45°C to 204.4°C)
- Custom lengths, sizes, and packaging available
- Wide temperature range and low compression set
- Available as leak-proof overmolded connections
- Security of supply with redundant manufacturing sites
- Manufactured with a focus on sustainability
- Comprehensive validation package to expedite qualification and validation.
| ASTM Method | Value | |
|---|---|---|
| Durometer, Shore A | D2240 | 50 +/-5 |
| Specific Gravity | D792 | 1.15 |
| Ultimate Tensile Strength, psi (MPa) | D412 | 1349 (9.2) |
| Ultimate Elongation, % | D412 | 900 |
| Tensile Modulus @100%, psi (MPa) | D412 | 190 (1.3) |
| Tear Strength, Die B, ppi (kN/M) | D624 | 250 (44) |
| Compression Set, % | D395B | 20 |
NOTE: Testing based on liner only.
Available with validated sterility assurance of 10-6 via gamma irradiation per ISO 11137 method VDmax 25. A full sterility validation guide is available upon request.
| Acids, Dilute / Weak | Test Before Using |
| Acids, Strong / Concentrated | Test Before Using |
| Bases, Dilute / Weak | Acceptable |
| Bases, Strong / Concentrated | Test Before Using |
| Salts | Acceptable |
| High Purity Water | Test Before Using |
| Oil/Water Emulsion | Test Before Using |
| Alcohol | Test Before Using |
| Organic Solvent | Test Before Using |
- USP <665> Extractables/Leachables
- USP <87> Cytotoxicity MEM Elution
- USP <88> Class VI
- USP <85> Bacterial Endotoxin
- European Pharmacopeia 3.1.9
- ISO 10993-3 (Ames Genotoxicity)
- RoHS Compliant
- ADCF Compliant
| Autoclave | One-time cycle at 121°C, 30 min |
| Gamma Irradiation | One-time up to 40 kGy |
| X-Ray | One-time up to 40 kGy |
WARNING: APSH silicone hose should not be utilized in hot
oil or acid applications.
Options & Sizes
| Part Number | Catalog Number | I.D. | Wall | O.D. (reference) | Working Pressure 3:1 Safety Factor 70°F (21.1°C) | Bend Radius | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | PSI | bar | in | mm | ||
| A7000591 | APST-0030-0160 | 0.030 | 0.76 | 0.065 | 1.65 | 0.160 | 4.06 | 53 | 3.7 | 0.125 | 3.18 |
| A7001098 | APST-0063-0125 | 0.063 | 1.59 | 0.031 | 0.79 | 0.125 | 3.18 | 22 | 1.5 | 0.125 | 3.18 |
| A7001111 | APST-0063-0188 | 0.063 | 1.59 | 0.063 | 1.59 | 0.188 | 4.76 | 33 | 2.3 | 0.125 | 3.18 |
| A7001280 | APST-0078-0141 | 0.078 | 1.98 | 0.031 | 0.79 | 0.141 | 3.58 | 17 | 1.2 | 0.250 | 6.35 |
| A7001475 | APST-0094-0219 | 0.094 | 2.38 | 0.063 | 1.59 | 0.219 | 5.56 | 15 | 1.7 | 0.125 | 3.18 |
| A7001488 | APST-0094-0281 | 0.094 | 2.38 | 0.094 | 2.38 | 0.281 | 7.14 | 34 | 2.3 | 0.125 | 3.18 |
| A7001657 | APST-0125-0250 | 0.125 | 3.18 | 0.063 | 1.59 | 0.250 | 6.35 | 23 | 1.6 | 0.250 | 6.35 |
| A7001670 | APST-0125-0313 | 0.125 | 3.18 | 0.094 | 2.38 | 0.313 | 7.94 | 29 | 2.0 | 0.250 | 6.35 |
| A7001683 | APST-0125-0375 | 0.125 | 3.18 | 0.125 | 3.18 | 0.375 | 9.53 | 37 | 2.6 | 0.125 | 3.18 |
| A7001839 | APST-0156-0281 | 0.156 | 3.97 | 0.063 | 1.59 | 0.281 | 7.14 | N/A | N/A | N/A | N/A |
| A7001865 | APST-0156-0406 | 0.156 | 3.97 | 0.125 | 3.18 | 0.406 | 10.31 | 33 | 2.3 | 0.250 | 6.35 |
| A7002021 | APST-0188-0313 | 0.188 | 4.76 | 0.063 | 1.59 | 0.313 | 7.94 | 16 | 1.1 | 0.375 | 9.53 |
| A7002034 | APST-0188-0375 | 0.188 | 4.76 | 0.094 | 2.38 | 0.375 | 9.53 | 21 | 1.4 | 0.375 | 9.53 |
| A7002047 | APST-0188-0438 | 0.188 | 4.76 | 0.125 | 3.18 | 0.438 | 11.11 | 25 | 1.7 | 0.250 | 6.35 |
| A7002203 | APST-0250-0375 | 0.250 | 6.35 | 0.063 | 1.59 | 0.375 | 9.53 | 13 | 0.9 | 0.729 | 18.52 |
| A7002216 | APST-0250-0438 | 0.250 | 6.35 | 0.094 | 2.38 | 0.438 | 11.11 | 18 | 1.2 | 0.500 | 12.70 |
| A7002229 | APST-0250-0500 | 0.250 | 6.35 | 0.125 | 3.18 | 0.500 | 12.70 | 22 | 1.5 | 0.396 | 10.06 |
| A7002372 | APST-0313-0375 | 0.313 | 7.94 | 0.031 | 0.79 | 0.375 | 9.53 | N/A | N/A | N/A | N/A |
| A7002385 | APST-0313-0438 | 0.313 | 7.94 | 0.063 | 1.59 | 0.438 | 11.11 | 11 | 0.8 | 0.958 | 24.33 |
| A7002398 | APST-0313-0500 | 0.313 | 7.94 | 0.094 | 2.38 | 0.500 | 12.70 | 17 | 1.2 | 0.750 | 19.05 |
| A7002411 | APST-0313-0563 | 0.313 | 7.94 | 0.125 | 3.18 | 0.563 | 14.30 | 21 | 1.4 | 0.500 | 12.70 |
| A7002567 | APST-0375-0500 | 0.375 | 9.53 | 0.063 | 1.59 | 0.500 | 12.70 | 10 | 0.7 | 1.271 | 32.28 |
| A7002580 | APST-0375-0563 | 0.375 | 9.53 | 0.094 | 2.38 | 0.563 | 14.30 | 16 | 1.1 | 0.938 | 24.83 |
| A7002593 | APST-0375-0625 | 0.375 | 9.53 | 0.125 | 3.18 | 0.625 | 15.88 | 16 | 1.1 | 0.750 | 19.05 |
| A7002749 | APST-0500-0625 | 0.500 | 12.70 | 0.063 | 1.59 | 0.625 | 15.88 | N/A | N/A | N/A | N/A |
| A7002762 | APST-0500-0688 | 0.500 | 12.70 | 0.094 | 2.38 | 0.688 | 17.48 | 11 | 0.8 | 1.500 | 38.10 |
| A7002775 | APST-0500-0750 | 0.500 | 12.70 | 0.125 | 3.18 | 0.750 | 19.05 | 12 | 0.8 | 1.188 | 30.18 |
| A7002957 | APST-0625-0875 | 0.625 | 15.88 | 0.125 | 3.18 | 0.875 | 22.23 | 11 | 0.8 | 1.708 | 43.38 |
| A7002970 | APST-0625-1000 | 0.625 | 15.88 | 0.188 | 4.76 | 1.000 | 25.40 | 16 | 1.1 | 1.208 | 30.68 |
| A7003139 | APST-0750-1000 | 0.750 | 19.05 | 0.125 | 3.18 | 1.000 | 25.40 | 10 | 0.7 | 2.542 | 64.57 |
| A7003152 | APST-0750-1125 | 0.750 | 19.05 | 0.188 | 4.76 | 1.125 | 25.58 | 14 | 1.0 | 1.625 | 41.28 |
| A7003295 | APST-0875-1000 | 0.875 | 22.23 | 0.063 | 1.59 | 1.000 | 25.40 | N/A | N/A | N/A | N/A |
| A7003503 | APST-1000-1250 | 1.000 | 25.40 | 0.125 | 3.18 | 1.250 | 31.75 | 8 | 0.6 | 4.542 | 115.37 |
| A7003516 | APST-1000-1375 | 1.000 | 25.40 | 0.188 | 4.76 | 1.375 | 34.93 | 11 | 0.8 | 3.250 | 82.55 |
| A7003529 | APST-1000-1500 | 1.000 | 25.40 | 0.250 | 6.35 | 1.500 | 38.10 | 13 | 0.9 | N/A | N/A |
NOTE: Not all standard part numbers are stocked items. For the up-to-date list of stocked sizes and lengths available, please contact your sales representative.
Non-listed sizes and custom lengths are available by special order. Application testing is recommended. Coils and spools are supplied double-bagged in heat-sealed polybags and bulk packed. Contact your AdvantaPure sales representative for other packaging options.
NOTE: The data listed is meant only as a guide to aid in the design and is believed to be reliable; however, nothing stated shall constitute a guarantee or warranty for any application. Product field testing should be performed to find the actual values for a specific application.
