AdvantaSil® APSPG Platinum-Cured Silicone Pump Tubing

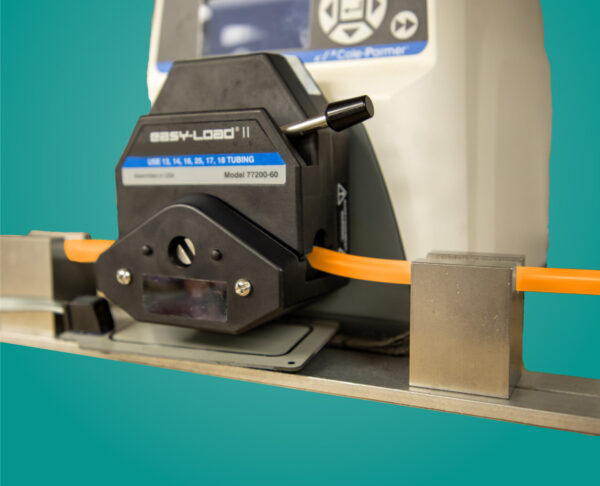

AdvantaSil® APSPG platinum-cured, silicone pump tubing is a high-performance, platinum-cured silicone tubing designed for the most demanding peristaltic pump applications in the pharmaceutical and biopharmaceutical industries. Engineered for long-term durability, this translucent tubing provides excellent fluid visibility and consistent performance through repeated pump cycles. Its advanced formulation ensures reliable operation even under continuous compression and release, significantly outlasting standard silicone tubing.
Manufactured in compliance with stringent regulatory standards, AdvantaSil APSPG undergoes comprehensive testing to ensure high-quality performance. It complies with the industry specifications, including USP and ISO standards, and comes with a complete extractable report from the Biophorum Operations Group (BPOG).
- Translucent for fluid flow visibility
- Special formulation offers long pump life
- Excellent flexibility
- General temperature range -50°F to 400°F (-45°C to 204.4°C)
- Custom lengths, sizes and packaging available
- Extruded, assembled, and packaged in an ISO Class 7 cleanroom
- Available as leak-proof, simple or complex, overmolded connections and tubing
- Smooth surfaces offer uniform fluid flow and resistance to bacteria build-up
- Manufacturing with a focus on sustainability
- Sterilizable by autoclave and gamma-irradiation
- Comprehensive validation package to expedite qualification and validation.
- Full BPOG standardized and USP 665 extractables test results available on request.
| ASTM Method | Value | |
|---|---|---|
| Durometer, Shore A | D2240 | 50A |
| Specific Gravity | D792 | 1.12 |
| Ultimate Tensile, psi | D412 | 1100 |
| Ultimate Elongation, % | D412 | 450 |
| Tensile Modulus @100%, psi | D412 | 200 |
| Tear Strength, Die B, ppi | D624 | 100 |
| Compression Set, % | D395B | 30 |
- BPOG Extractables/Leachables
- USP <87> Cytotoxicity MEM Elution
- USP <88> Class VI
- USP <85> Bacterial Endotoxin
- European Pharmacopeia 3.1.9
- ISO 10993-3 (Ames Genotoxicity)
- RoHS Compliant
- ADCF Compliant
- Review the Regulatory Overview chart (Link)
| Acids, Dilute / Weak | Test Before Using |
| Acids, Strong / Concentrated | Test Before Using |
| Bases, Dilute / Weak | Acceptable |
| Bases, Strong / Concentrated | Test Before Using |
| Salts | Acceptable |
| High Purity Water | Test Before Using |
| Oil/Water Emulsion | Test Before Using |
| Alcohol | Test Before Using |
| Organic Solvent | Test Before Using |
Available with validated sterility assurance of 10-6 via gamma irradiation per ISO 11137 method VDmax 25. A full sterility validation guide is available upon request.
Autoclave – One-time cycle at 121°C, 30 min
Gamma Irradiation – One-time up to 40 kGy
Options & Sizes
| Part Number | Catalog Number | I.D. | Wall | O.D. | |||
|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | ||
| A7020078 | APSPG-0031-0156 | 0.031 | 0.79 | 0.063 | 1.59 | 0.156 | 3.97 |
| A7020130 | APSPG-0063-0188 | 0.063 | 1.59 | 0.063 | 1.59 | 0.188 | 4.76 |
| A70200234 | APSPG-0125-0250 | 0.125 | 3.18 | 0.063 | 1.59 | 0.250 | 6.35 |
| A7020390 | APSPG-0188-0313 | 0.188 | 4.76 | 0.063 | 1.59 | 0.313 | 7.94 |
| A7020598 | APSPG-0250-0375 | 0.250 | 6.35 | 0.063 | 1.59 | 0.375 | 0.52 |
| A7020650 | APSPG-0250-0438 | 0.250 | 6.35 | 0.094 | 2.38 | 0.438 | 11.11 |
| A7020676 | APSPG-0250-0500 | 0.250 | 6.35 | 0.125 | 3.18 | 0.500 | 12.70 |
| A7020702 | APSPG-0313-0500 | 0.313 | 7.94 | 0.094 | 2.38 | 0.500 | 12.70 |
| A7020910 | APSPG-0375-0563 | 0.375 | 9.52 | 0.094 | 2.38 | 0.563 | 14.29 |
| A7020962 | APSPG-0375-0625 | 0.375 | 9.52 | 0.125 | 3.18 | 0.625 | 15.88 |
| A7021326 | APSPG-0500-0750 | 0.500 | 12.70 | 0.125 | 3.18 | 0.750 | 19.05 |
NOTE: Not all standard part numbers are stocked items. For the up-to-date list of stocked sizes and lengths available, please contact your sales representative.
Non-listed sizes and custom lengths are available by special order. Coils are supplied double bagged in heat-sealed polybags and bulk packed. Contact your AdvantaPure sales representative for other packaging options.
NOTE: The data listed throughout this datasheet is meant only as a guide to aid in the design and is believed to be reliable; however, nothing stated shall constitute a guarantee or warranty for any application. Product field testing should be performed to find the actual values for a specific application
Download a PDF of our Data Sheet
