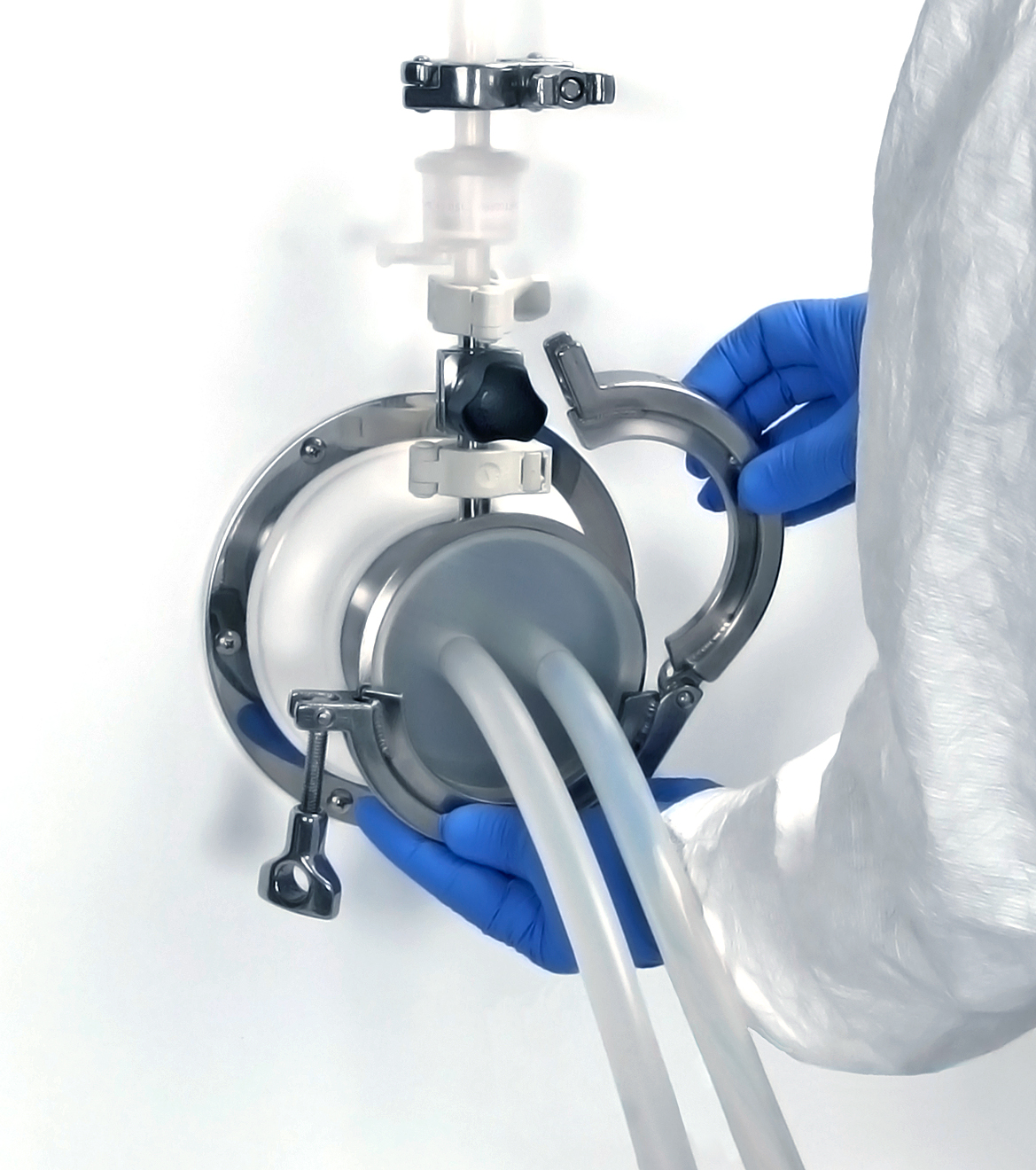

AdvantaPass® Clean Room Pass-Through Technology

• When used with SUS components – eliminates the need to clean and validate hard piping
• Single or multiple fluid flow lines without isolation barrier compromise
• Provides reliable fluid transfer method without the need to reconfigure surrounding space
• Low maintenance
• Custom manufactured base unit, standardized complementary parts per application
• Compatible with most wall and floor thicknesses
• Assembly takes minutes
• Standard sizes 4” and 6” with custom configurations available
• Port assembly made in the USA from 316L stainless steel

*If adding purge ports, additional components will be required. Purge ports will reduce contamination.

AdvantaSil APST Unreinforced Platinum Cured Silicone Tubing
Platinum-cured silicone tubing is clean room produced for critical biopharma and pharmaceutical application. APST has undergone extensive physical, chemical and biological testing and meets USP Class VI, ISO and EP standard.

AdvantaFlex Biopharmaceutical Grade TPE Tubing
AdvantaFlex provides a flexible, sterilizable, moldable, weldable, and heat sealable biopharmaceutical tubing without silicone oils. It maintains its physical properties, including its translucence, following sterilization and does not become “gummy”. All tubing is kink resistant.

Single-Use Isolator Assembly
A single-use isolator assembly can be manufactured to fit the AdvantaPass and includes either the AdvantaSil (APST) or AdvantaFlex (APAF-BP) tubing. All assemblies include silicone, friction fit isolator disks. This assembly supports multiple tubes passing through the isolator disk and allows for a customizable mix of silicone and TPE to meet your specific needs.

AdvantaPass Components

A – Hygienic Clamp HD 304 SS
B – Support Ring
C – Isolator Disk and Assembly
D – Silicone Boot
E – 316L SS Portal
F – Platinum LIM Silicone Solid Isolator
G – 316L SS Solid End Cap
H – Hygienic Clamp with Welded Split Cap

NOTE: Sanitary clamps provided are ASME BPE compliant. Non-BPE compliant clamps may not work with AdvantaPass. The single-use isolator assembly consists of one or more sections of AdvantaPure tubing with two isolators.

Customizable Manufacturing

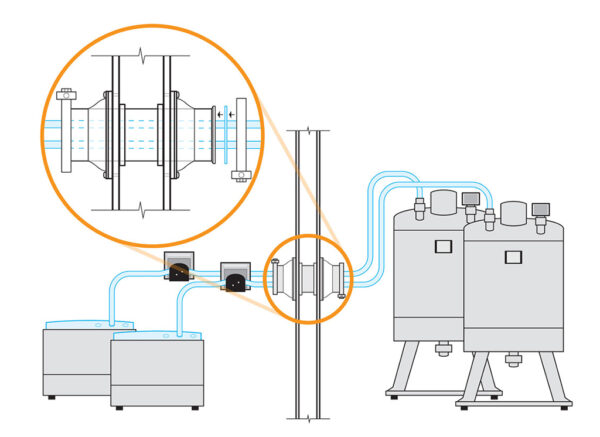

The AdvantaPass system is customizable to fit various wall thicknesses and can be adapted for floor-to-ceiling conveyance. It manages multiple tubing apertures and purge ports through a single wall portal.

This system reduces production stoppages associated with sterilization and validation of hard piping transfer systems, saving resources, cleaning chemicals, time, and labor. The single-use components offer flexibility, minimize cross-contamination risk, and improve productivity and efficiency.

Is AdvantaPass right for me?
To receive a quote, we’ll need additional information about your project.
Complete the questionnaire and receive your complimentary quote. AdvantaPass Questionnaire
